MedXP Lite Dockstation

A budget-friendly, single-pack battery for telehealth and point-of-care carts that don’t need hot-swap — strong capacity, only the essential outputs.

289 Wh

9 lb complete system

UL60601 tested

Request a Quote or call (800) 222-1440

What’s Built In

The MedXP-400 platform, simplified for a lighter budget.

Built for facilities that need a compact, medical-grade battery without paying for hot-swap capability they won’t use — the hot-swap circuitry is gone, the multiple DC outputs are consolidated into one, and what’s left is a cost-effective power source sized for telemedicine equipment.

Single DC output: 12V @ 120W or 19V @ 150W

USB-C PD output up to 60W (20V/15V/12V/9V/5V)

USB-A output, 18W max, QC 2.0

Detachable holster-to-module cable in 2 ft or 6 ft lengths

Weight & Dimensions

One holster, one battery, nine pounds total.

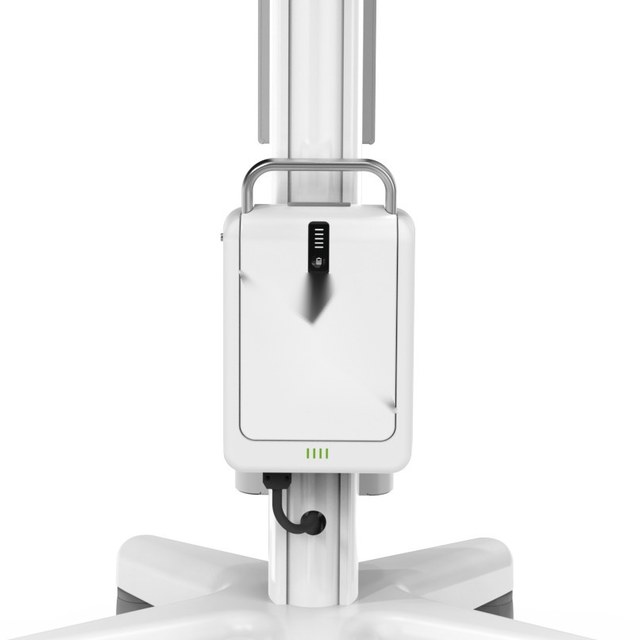

The system mounts as a holster with a detachable wired module, so the battery itself can sit wherever it’s easiest to reach on the cart. Fully assembled, the complete Dockstation adds about 9 lbs.

Module

7.09″ × 4.49″ × 1.57″

Holster

10.12″ × 7.20″ × 2.64″

Aux Pack

10.50″ × 5.75″ × 2.00″

Total assembled weight: 9 lbs.

Full Specifications

Every number, for the people who ask for them.

ModelMEDXP-LITE, Dockstation + Aux Battery

Weight9 lbs, fully assembled

Module Dimensions7.09″ L × 4.49″ W × 1.57″ H

Holster / Aux Dimensions10.12″ × 7.20″ × 2.64″ / 10.50″ × 5.75″ × 2.00″

Battery Capacity289 Wh

Total Output Power180W

CertificationsUL60601 tested, UL, FCC, CE

Warranty3-Year Limited Warranty

Ready to spec the MedXP Lite?

Tell us your cart model and cable length preference, and we’ll get you a quote.
