Control Room Consoles — Dual Technician Configuration

Our most popular dual tech layout. Completely customizable to your room dimensions and equipment needs.

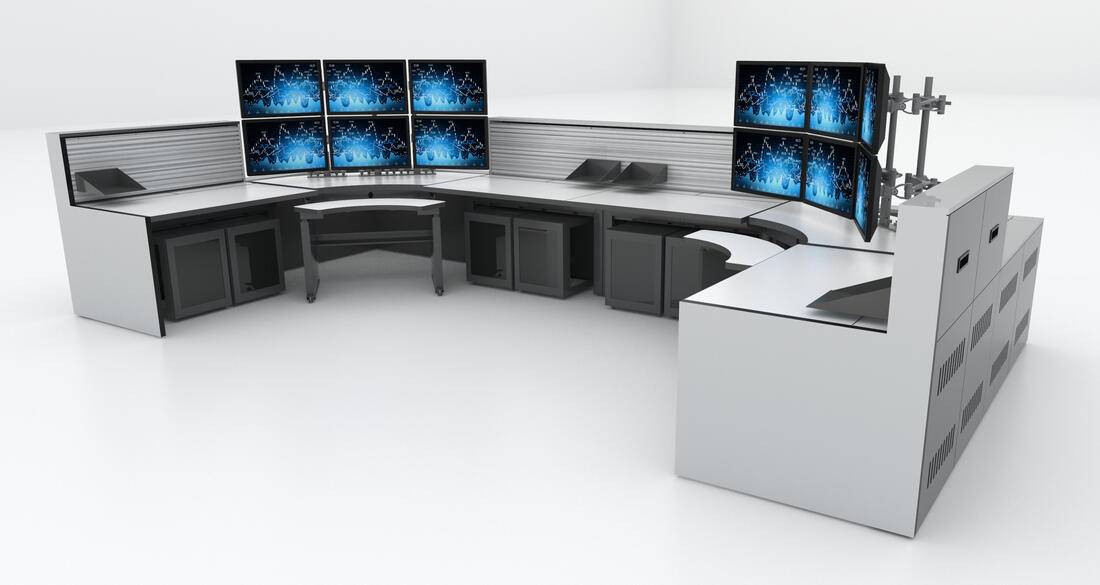

This is a real Uptime build — not a stock photo. Two full technician stations, a curved center span, and a 6-monitor array on each side. Shown here at its original dimensions; every wing length, return, and monitor count adjusts to your floor plan.

Sample Layout
Layout 6 · Two-position U/wing console
Dual 6-monitor arrays, curved center desk, full-height cabinet storage
Built to your dimensions
Sample Layout

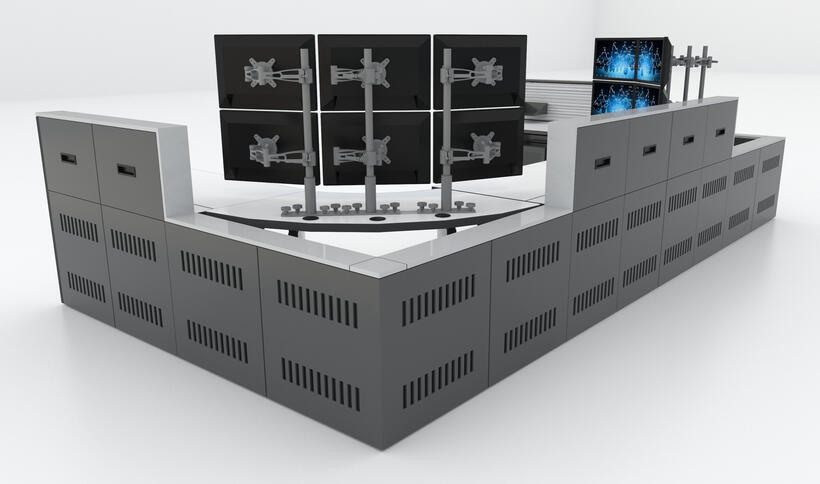

Independent articulating monitor arms — each screen adjusts on its own for height, depth, and angle.

What’s built into this layout.

Dual monitor surface mount — six-screen array per position, mounted to the work surface, not the wall.
Dual CPU enclosure — ventilated, locking bays keep towers off the floor and out of the way.
Slatwall & large binder holder — reference material and small accessories, off the work surface.
Telephone tray & dual work surface — dedicated space for handsets and paperwork alongside the primary desk.
Laminate top cap & vertical end panels — finished edges on every visible surface, no exposed substrate.

Every project starts here

The dimensional drawing behind the render.

This is the actual CAD drawing this render was built from — a labeled isometric for what each component is, and a dimensioned plan view for exactly where it goes. Send a room sketch and this is what comes back for yours.

Sample Layout

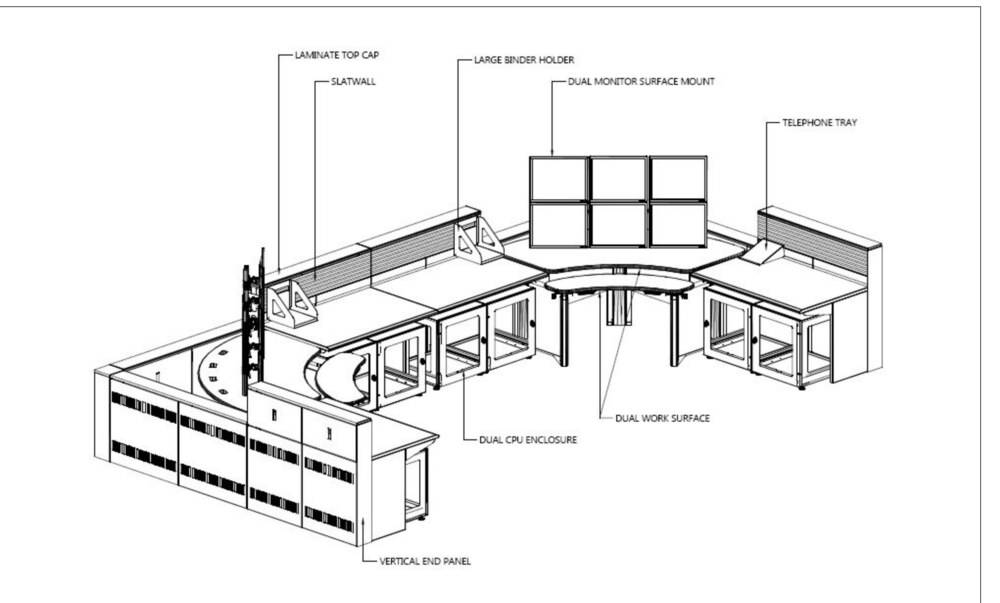

Isometric view Component callouts
Sample Layout

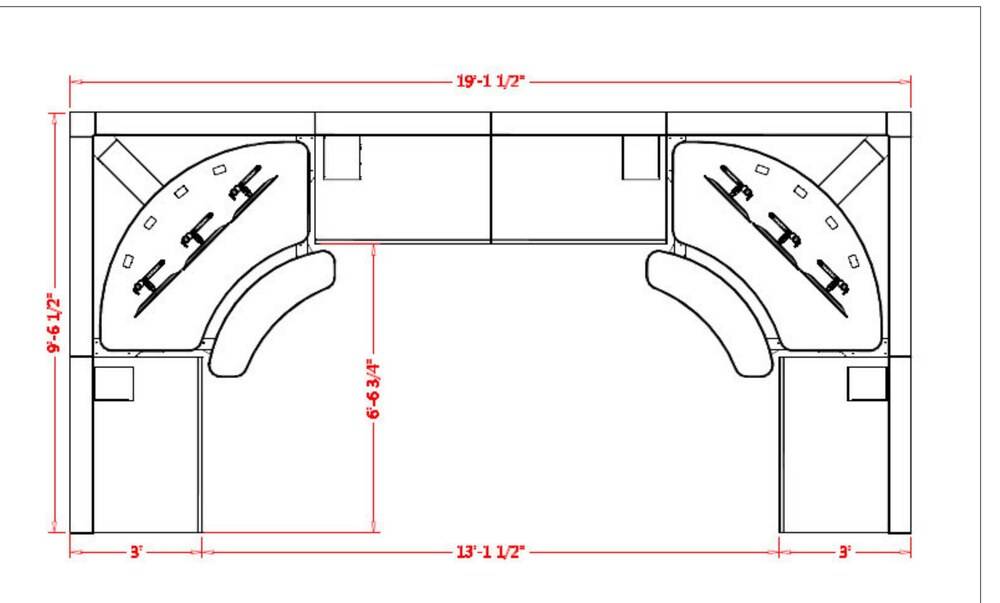

Plan view Full dimensions

Nothing here is fixed.

This is one real example, not a catalog part number. Send us your room and we’ll adjust every dimension, position count, and monitor configuration to match — then send back a rendering and drawing of your version, the same way this one started.

Wing length and center span sized to your walls
Monitor count and mounting style per position
One position or a full team floor of them

GSA Schedule pricing available for qualifying agencies
