Command Console Series
OnGuard
A highly configurable all-steel command console for 911 dispatch, emergency operations, network operations, and every other room that runs 24/7/365 — stand-alone or linked into a full multi-position floor.
All-steel, made in the U.S.
Sit-to-stand or stationary
Sized to your room
Built for Round-the-Clock Operations
IT can work on it while your operators keep working.
From technology-specific storage to cable management and tool-less access panels, OnGuard is designed so technical staff can reach cables and equipment without interrupting the person on shift. Installs go faster, and maintenance downtime is kept to a minimum.
All-steel construction — heavy-duty lifts and a durable finish, built for multi-shift use.
Continuous lay-in cable management — easy access to cabling above and below the worksurface.
Custom-configurable — corner or linear, stand-alone or multi-position, sized to any space.
Designed and manufactured in the U.S. — by tenured craftsmen and engineers.

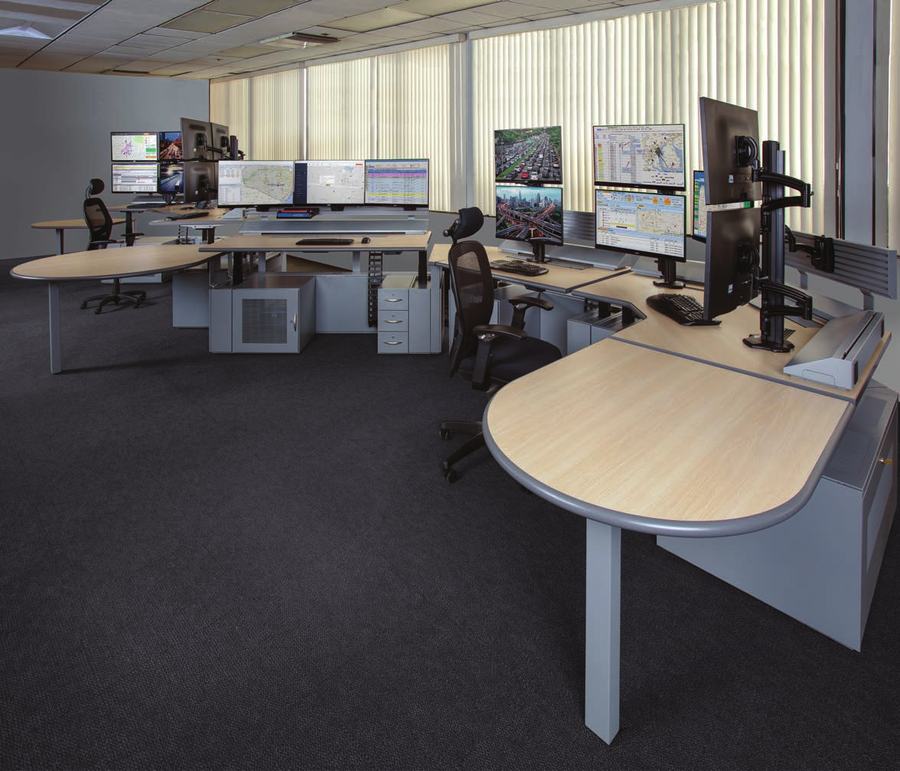

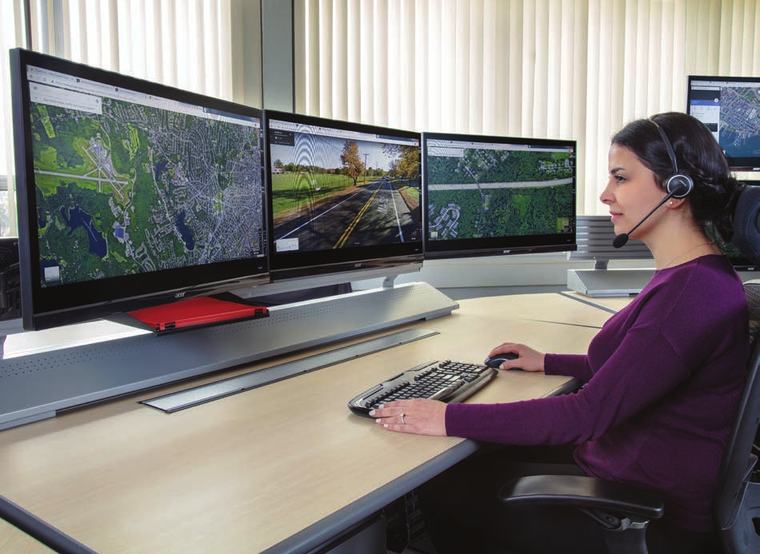

A multi-position OnGuard floor — the same series scales from one station to a full room.
Sizes, Shapes & Connectors
Corner or linear. One position or a whole floor.
OnGuard comes in corner or linear workstation options in multiple sizes, as stand-alone units or linked into a larger multi-unit configuration. Connectors join positions together and add shared space for conferencing, training stations, or extra storage. There’s no fixed catalog size — every console is configured to your room.
Linear workstation
A single straight run — stand-alone, or the building block of a larger layout.
Colors
A variety of laminate and steel color options to coordinate with your room.
Steel or laminate base panels
End and rear panels can be ordered in either material.
Dimensions
Configured per project — send your floor plan and we’ll size every position to fit.

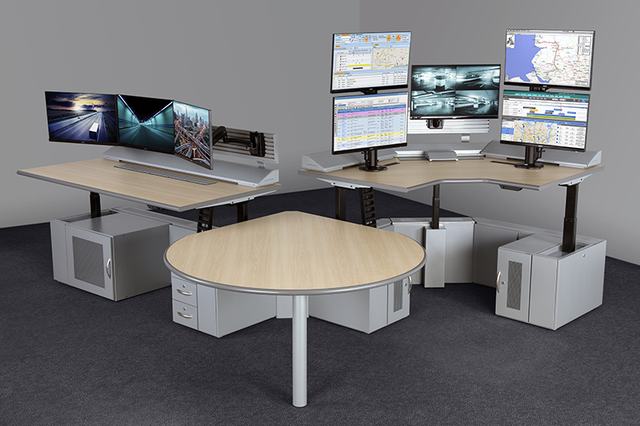

Teardrop connector
A rounded shared surface linking positions together.

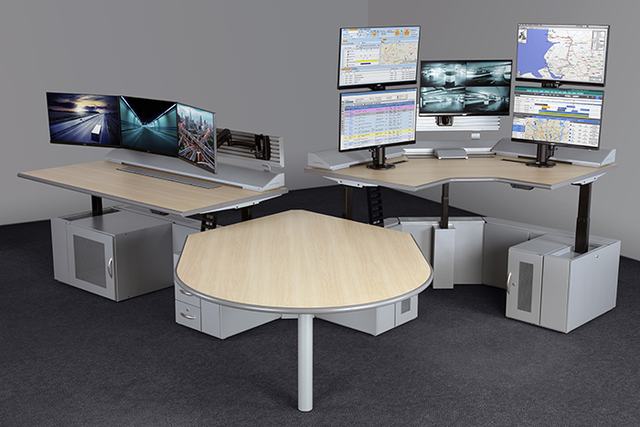

Peninsula connector
An extended surface off the console for shared or collaborative work.
90-degree curved connector
Turns a corner between two runs of positions.
Worksurfaces
Sit-to-stand now, or later.
Choose electric height-adjustable worksurfaces for sit-to-stand use, or stationary worksurfaces. Stationary units are designed to upgrade to sit-to-stand in the future if your needs change. A single lift surface gives each operator an expanded workspace.
Sit-to-stand workstation
Stationary workstation
Bullnose edge · standard

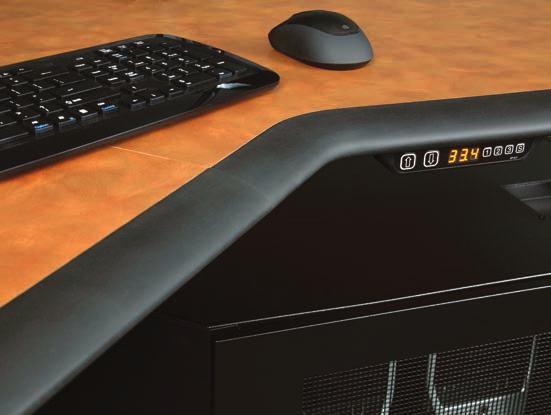

Comfort edge · upgrade
Worksurface edge options
OnGuard comes standard with a classic bullnose edge, with an optional upgrade to a soft-touch comfort edge. Both are designed for operator comfort across long shifts.
Under-Worksurface Storage
Pick what goes under each side.
The right and left storage compartments each accept one option, so CPUs, rackmount gear, and personal belongings each have a proper place — off the floor and out of the operator’s way. Drawers are fully extending.
CPU storage
Ventilated bay with pull-out tray
Double CPU storage
Two towers behind one set of doors

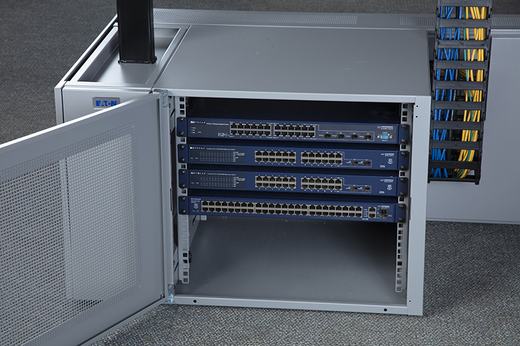

Rackmount storage
Rack rails for switches and network gear
Small drawer storage
Compact drawers for personal items

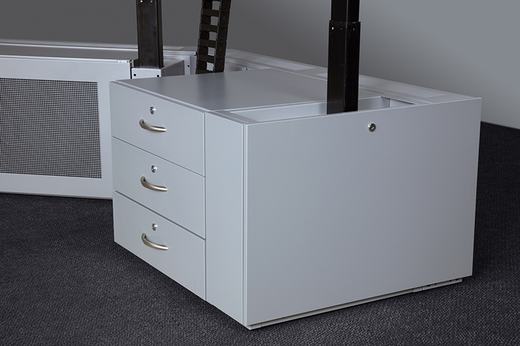

3-drawer storage
Full-extension drawers for files and supplies
Technology Integration
Power, data, and monitors — right where the operator needs them.
Every OnGuard console ships with two 20-amp PDUs installed in the worksurface storage, and the worksurface itself is built to carry technology without cutting into it.
TechTrack
A center-of-worksurface channel for monitor placement, USB, charging ports, or data jacks — and the air vents for the optional Personal Environment System.

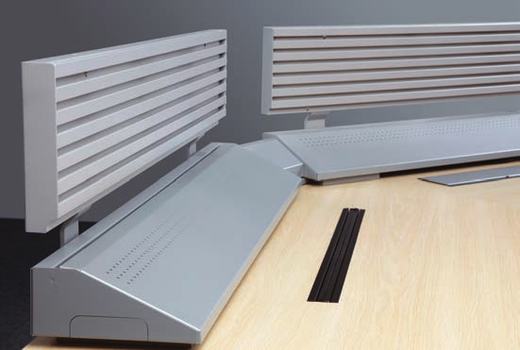

TechCurb
Routes cables continuously around the perimeter of the workstation, with power and cables accessible right at the desktop.
Monitor pole track
A patent-pending track on the left and right of the worksurface — mount monitor poles where you want them, and relocate them later without damaging the surface.

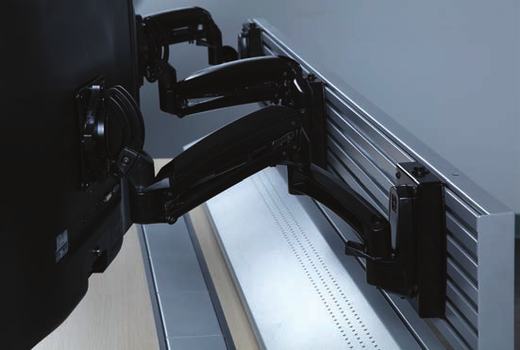

Slatwall option
Modular extruded aluminum slatwall that eases flat-panel mount installation and accepts a range of workstation accessories.

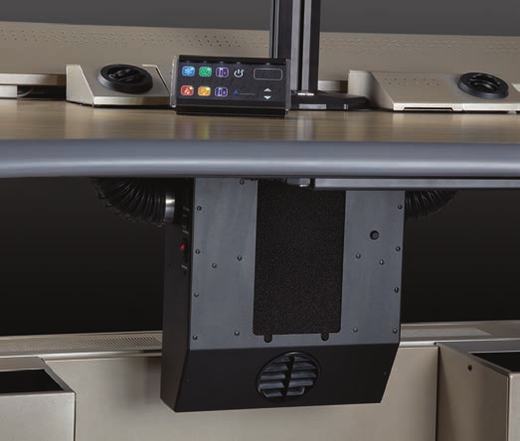

Personal Environment System · Optional
Every operator sets their own climate.
Each operator keeps personal settings for temperature and airflow. Adjustable louvers direct filtered air where the user wants it, and a forced heated-air vent under the worksurface warms legs and feet. Air and worksurface lift controls live on one full-color touchscreen — less wiring and less clutter on the desktop.
Touch pad controls for air and lift
Circulated ambient air above the worksurface
Circulated heated air below the worksurface

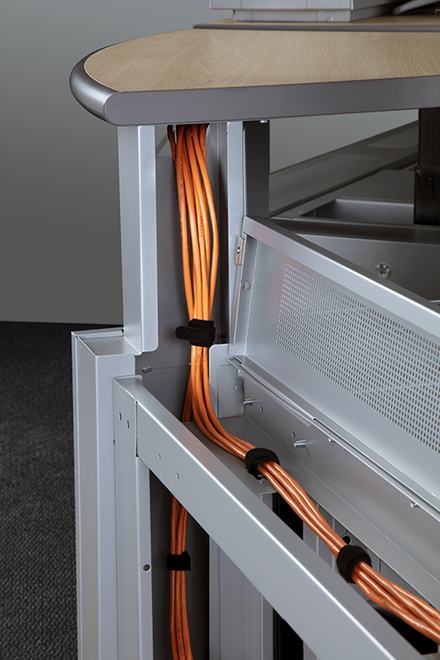

Cable Management
Cables organized, protected, and easy to reach.

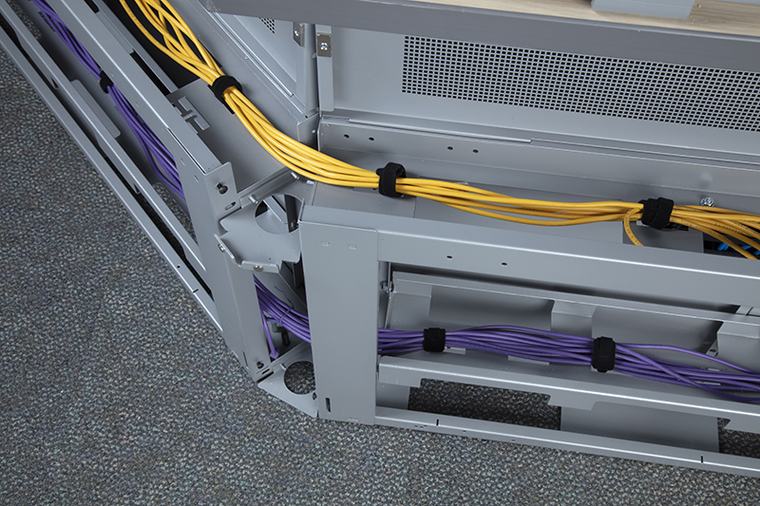

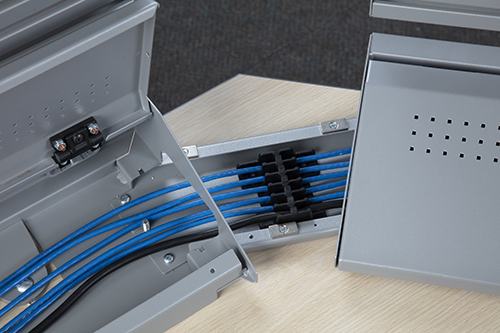

Lay-in cable channel
Cable chain
Cable fingers
Patented cable lay-in keeps cables neat and safe
Cable chain protects cables through every height adjustment
Add, adjust, or change cables above and below the worksurface
Government accounts
SIPR & NIPR separation
Separate cable pathways for SIPR (classified) and NIPR (unclassified) networks, available on request for government accounts.
Full Specifications
Every number, for the people who ask for them.
Applications911 / PSAP, emergency operations, network operations, transportation management, process control, security & surveillance
ConstructionAll-steel, heavy-duty lifts, durable finish; designed and manufactured in the U.S.
ConfigurationsCorner or linear; stand-alone or multi-position; teardrop, peninsula, and 90° curved connectors
DimensionsConfigured per project — multiple sizes, not published as a fixed model list
WorksurfaceElectric sit-to-stand or stationary (stationary upgradeable); single lift surface
EdgeBullnose standard; comfort edge upgrade
StorageRight and left compartments — CPU, double CPU, rackmount, 2-drawer, or 3-drawer
Panels & ColorsLaminate or steel end and rear panels; multiple laminate and steel colors
TechnologyTechTrack, TechCurb, monitor pole track; optional aluminum slatwall
PowerTwo 20A PDUs standard, installed in worksurface storage
Cable ManagementPatented continuous lay-in, cable chain, tool-less access; SIPR/NIPR separation for government accounts
ClimateOptional Personal Environment System (ambient air above, heated air below, touchscreen controls)
StandardsANSI/HFES 100-2007; verified conformity to ANSI/BIFMA X5.5-2008; UL 962; CSA C22.2 No. 68; GREENGUARD Indoor Air Quality Certified; ISO 9001-certified manufacturing
WarrantyNot published — ask your rep
Ready to spec OnGuard?
Send a floor plan — even a hand-drawn sketch with measurements — plus your position and monitor counts. We’ll send back a rendering and drawing. GSA Schedule pricing available for qualifying agencies.
